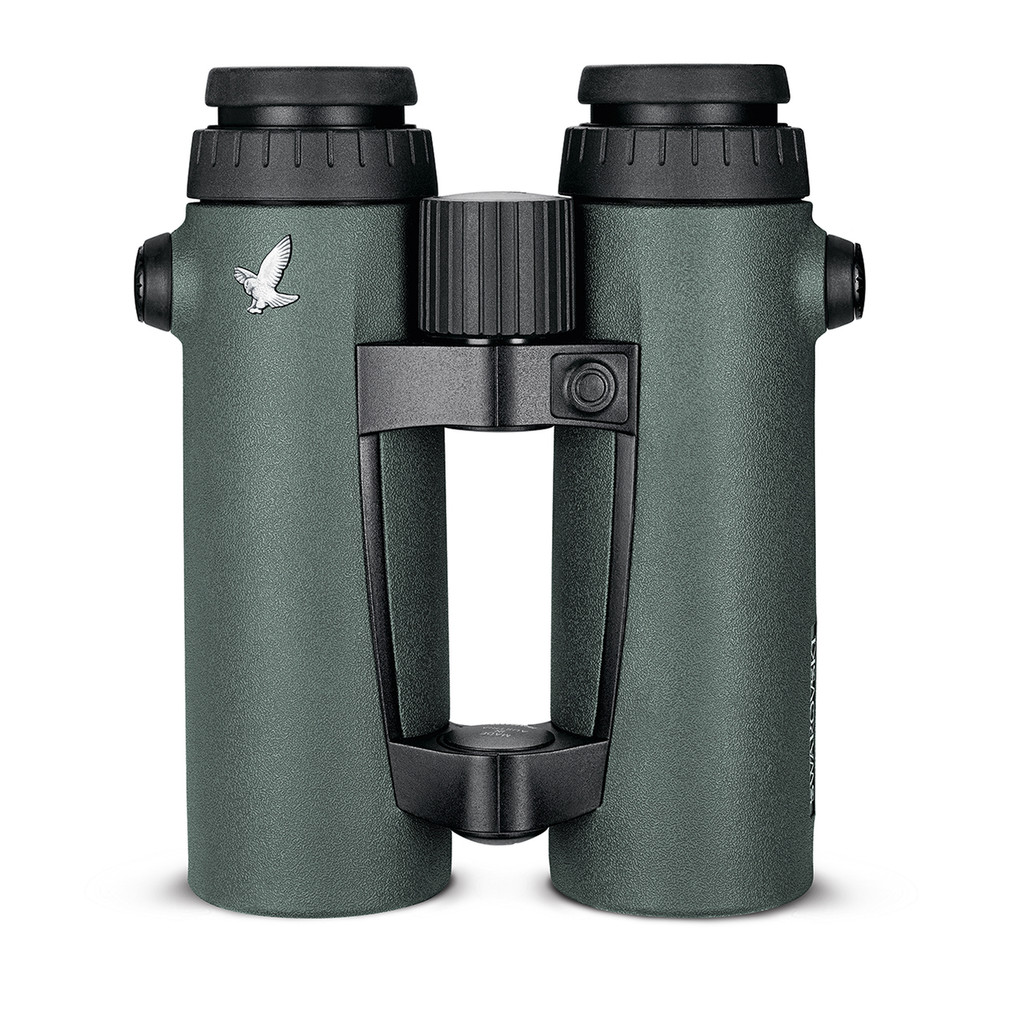

EL RANGE ( 10X42 W B )

Write a Review
Calculated at Checkout
  • EL RANGE  ( 10X42 W B )
  • EL RANGE  ( 10X42 W B )



The EL Range with the FieldPro package features a new connection for the new quick adjustment strap, an improved measurement button, new integrated objective covers and redesigned rainguard

The rotating strap connector adapts easily to any movement and can be quickly fitted to your EL Range

The quick catch button on the strap easily adjusts to an ideal length within seconds

The objective covers are securely fastened to provide the best protection against external impacts

Easily feel the measurement button, even when wearing gloves

Redesigned rainguard/ocular cover stays put

Ergonomically designed with rounder edges and more comfortable thumb rests

Lightweight and compact

Unprecedented light transmission – 91% for each barrel

Effective range of 33 to 1500 yards

Scan mode

Red LCD display has optional auto-brightness or fixed brightness

SWARO-AIM Technology – gives corrected ballistic trajectory yardage distance for angled shots at the push of a button

Extremely wide field of view

4 position eyecups for 100% field of view


Magnification (mm): 10X

Effective Objective Lens Diameter (mm): 42

Exit pupil distance (mm): 4.2

Exit Interpupillary diameter (mm): 17.3

Field of View (ft/1000 yds): 330

Field of View, real (degrees): 6.3

Field of View for Eyeglass Wearers (degrees): 6.3 = 100%

Field of view, apparent (degrees):

Shortest Focusing Distance (ft):

Dioptric compensation: (dpt) -7 / +5 ±5

Interpupillary distance (mm): 56 – 74

Light Transmission (%): 91

Twilight factor acc. to DIN 58388:

Measuring Accuracy (yds): ± 1

Measuring Time (sec): ≤ 1

Angular Measurement:  ± 90º

Battery:  CR2

Undervoltage display: Yes
